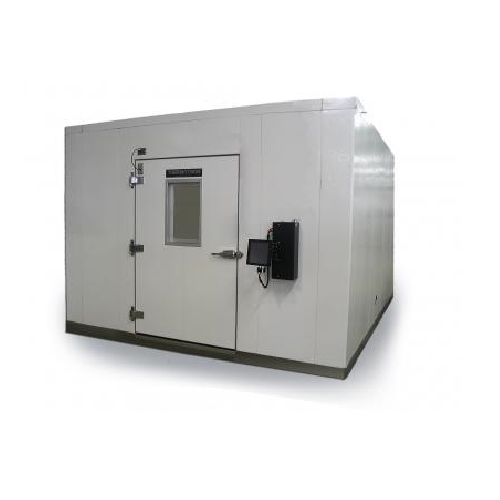

Walk In Chamber

Walk In Chamber

550000 INR/Piece

Product Details:

X

Walk In Chamber Price And Quantity

  • 550000 INR/Piece

Product Description

Holding immense research and development in this domain, we are engaged in manufacturing and exporting Walk In Chamber. To manufacture these chambers in accordance with industrial standards, we procure high grade quality components and materials from leading vendor base. Offered chamber is designed to test the various working characteristics of large components, assemblies & finished products such as computers, satellites, copiers, automobiles etc. It is highly capable in simulating varied temperature and humidity environment as per required to conduct desired test procedure. Offered Walk In Chamber has its wide application in multiple commercial sectors including defense, pharmaceutical, electronic, telecommunications etc.. Clients can purchase this chamber in varied available standard models from us at the affordable price range.

Features:

  • The solid walls are properly insulated to prevent against any shock while operating
  • It consists of self -contained conditioning module
  • Provided with various control switches and touch screen control panel for easy operation
  • Easy to operate and monitor the on-going function of chamber
  • High quality ensured, offered walk in chamber is ready to operate

Special Attractions:

  • These laboratory equipments are acknowledged for their hassle free performance
  • Offered laboratory equipments are known for their negligible maintenance
  • Further, offered laboratory equipments have control panel which are fitted with various buttons for multiple functions
  • Furthermore, these laboratory equipments have rust proof finish, hence work perfectly fine under all conditions
  • Moreover, offered laboratory equipments consume less power and have robust construction
  • Being a customer focused company, we dispatch these laboratory equipments in quality approved materials to ensure safe delivery
  • Our valued customers can avail these laboratory equipments in varied technical specifications according to their choice
Further Details:
  • 21 CFR compliance software
  • Wireless Data Logging available as option.
  • AUDIO MESSAGE Calling & Visual alerts (Alarms) Optional De- humidification Coils for controlling at Low RH. Micro-Controller based Supervisory Safety Monitoring System. Triple Safety Control System. Tube Light fittings are provided for internal illumination inside the chamber.
Construction
  • WALK-IN Chambers has Modular construction, for ease of transportation, erection & installation at site.
  • Chambers can be dismantled for relocation & reassembled at new location if desired so.
  • Interior executed in SS-304/316 ,Exterior executed in SS-304/GI Powder Coated
  • Glass Window for easy visual monitoring.

Heating System

  • Custom built SS tubular heaters are used as heating element. The Stainless Steel fins ensure better heat transfer.

Cooling System

  • Hermetically sealed compressor, with evaporation coil and condenser protected with time relay.
  • De- humidification Coils for controlling at Low RH.

Humidification

  • Humidity is controlled by steam injection method. The boiler tank is used for steam generation; Electromagnetic switch is used for sensing the Water Level.

Air Circulation

  • Suitable capacity blower which circulates air through out the chamber maintains uniformity of Temperature Humidity.

Technical Specification

Model No.

EWC - 10

EWC - 08

EWC-06

EWC-05

Capacity Ltrs

10000

8000

6000

5000

Factory Default Setting

30o C Vs 65% RH

30o C Vs 65% RH

30o C Vs 65% RH

30o C Vs 65% RH

Inner Size D x W x H cm

225x225x200

200x200x200

185x185x185

185x185x150

Trays

32

24

32

24
